INJECTION 2835-6114 1.2W IP67
Key Specifications
DIMENSION/mm: 61*14mm | LED TYPE: 2835 | VOLTAGE: DC12V | POWER: 1.2W | LUMEN/W: 140LM
Product Details
BEAM ANGLE: 160°
IP RATING: IP67
LED QTY/PCS: 3LEDs
WARRANTY: 2 YEARS WARRANTY
QTY/CTN: 5000PCs
Product Description
Features:
- High Energy Efficiency & Superior Optical Performance: Features low power consumption and high energy efficiency, effectively reducing long-term operational costs. Enhances light concentration and uniformity, ensuring clear and bright illumination for signage and various lighting scenarios.
- All-Weather Environmental Adaptability: Equipped with a reliable waterproof design, it can withstand harsh weather conditions such as rain and humidity. Maintains stable performance in both indoor and outdoor environments, boasting strong environmental versatility.
- Easy Installation & Flexible Application: Pre-applied double-sided tape on the back eliminates the need for complex tools and professional construction, significantly saving installation time and labor costs.
- Bulk Customization Capability: Supports customized services for batch orders, perfectly meeting the personalized brand signage needs of enterprise clients.
- Reliable Quality & Safe Operation: Adopts high-quality components and a low heat dissipation design, featuring exquisite craftsmanship, stable performance, safety, durability and a long service life, which reduces clients’ procurement risks.
Application:
Widely used in public advertise and notice as Channel Letters Backlighting, Advertisement Signs, Signage letters, signs, logos, lightboxes, and so on.
Description:
| Model: | 6114 3LED Injection Module |
| Brand : | ABT |
| Voltage: | DC12V |
| LED color temperature: | 12000K |
| Emitting Color : | White |
| beam Angle : | 160° |
| Lumen(lm): | 140lm |
| Efficiency(lm/w): | 120LM/W |
| Power(W/pcs): | 1.2W |

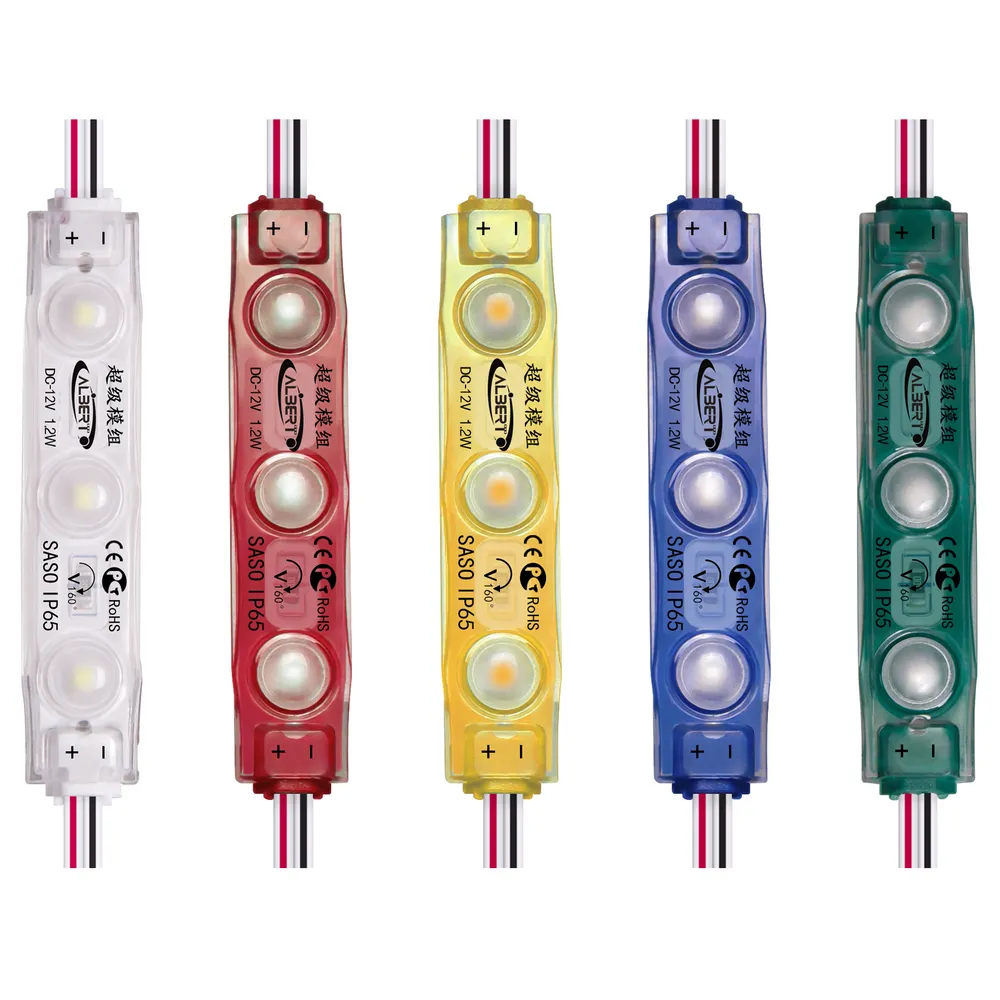

| other colors: | 6000K,/WW/Y/R/G/B/P |
| LED Type: | High Quality super bright 2835 LED |
| Quantity leds: | 3PCS 2835 leds per module |
| IP grade: | IP67 |
| Size of module : | 61*14mm per module |
| Max cascade(pcs): | 20 |
| Working temp(°C): | -25 ~ +55 |
| Storage temp(°C): | -25 +70 |
| Lifespan: | > 50000 hours |
