OUTDOOR WATERPROOF POWER SUPPLY

Key Specifications

Input Voltage: 180-264VAC  | Output Voltage: 12V/24V  | Output Current: 3A/5A/8.3A/12.5A/16.7A/20A/25A/30A/41.6A/50A  | Output Power: 36W/60W/100W/150W/200W/250W/300W/400W/500W/600W  | Operating temperature: -35~+50°C  | MODEL: 12V36W/60/100/150/200/250/300/400/500/600

Product Details

IP rating: IP67
INPUT fREQUENCY Range: 50/60HZ
shell material: Aluminum
applicaiton: Outdoor
efficiency: ≥86%

Product Description

Product features:

\n

AC input range (180-264VAC)

\n

Can work normally at -35~~60℃ ambient temperature

\n

Efficiency up to 86%

\n

Protection type: short circuit/over load

\n

Full potting design

\n

Excellent quality and high reliability

\n

100% full load burn-in test

\n

2 years warrany

\n

Application:

\n

Outdoor landscape lighting project

\n

LED low voltage signage

\n

LED low voltage light with lighting

\n

Minus 35℃ low temperature environment site

\n



\n

Product Electrical Parameters

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
MODELINPUT VOLT.INPUT CURRENTOUTPUT VOLT.OUTPUT CURRENTEFFIOperating temperaturePOWERPROD.WEIGHTPROD.SIZEG.W/CTNQTY/CTNCTN SIZE
12V36W170-265VAC 50/60HZ0.16-0.25A12V3A0.85 -40°c-70°c36W
12V48W170-265VAC 50/60HZ0.21-0.33A12V4A0.85 -40°c-70°c48W234.3g152X44X21MM18KG76pcs30.5X30.5X24CM
12V60W170-265VAC 50/60HZ0.3-0.4A12V5A0.85 -40°c-70°c60W234.3g152X44X21MM18KG76pcs30.5X30.5X24CM

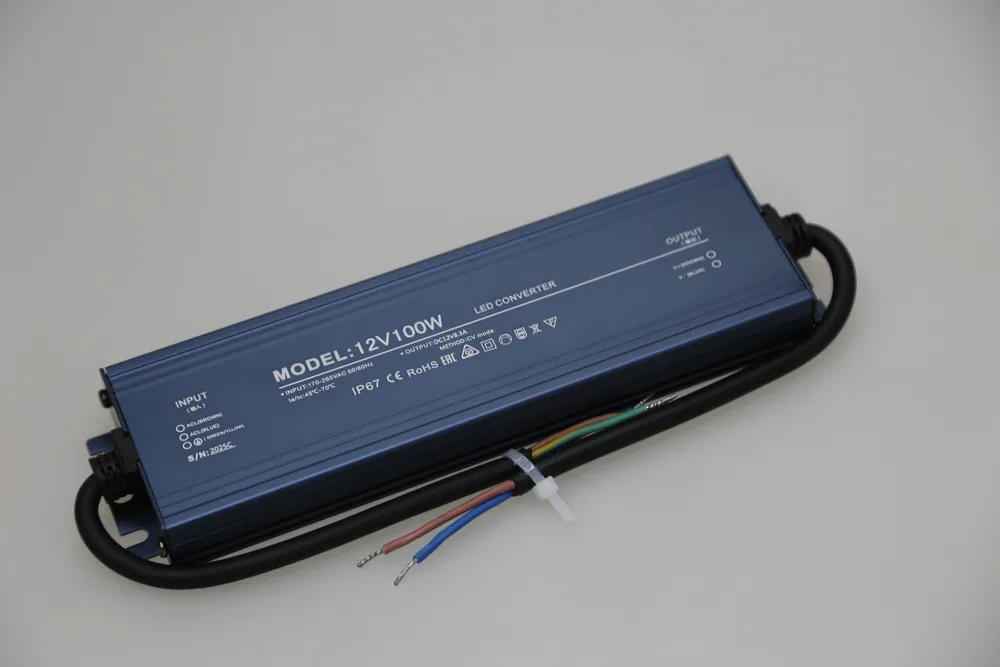

12V100W170-265VAC 50/60HZ0.45-0.66A12V8.3A0.85 -40°c-70°c100W385g196X53X21MM17KG40pcs30.5X30.5X24CM

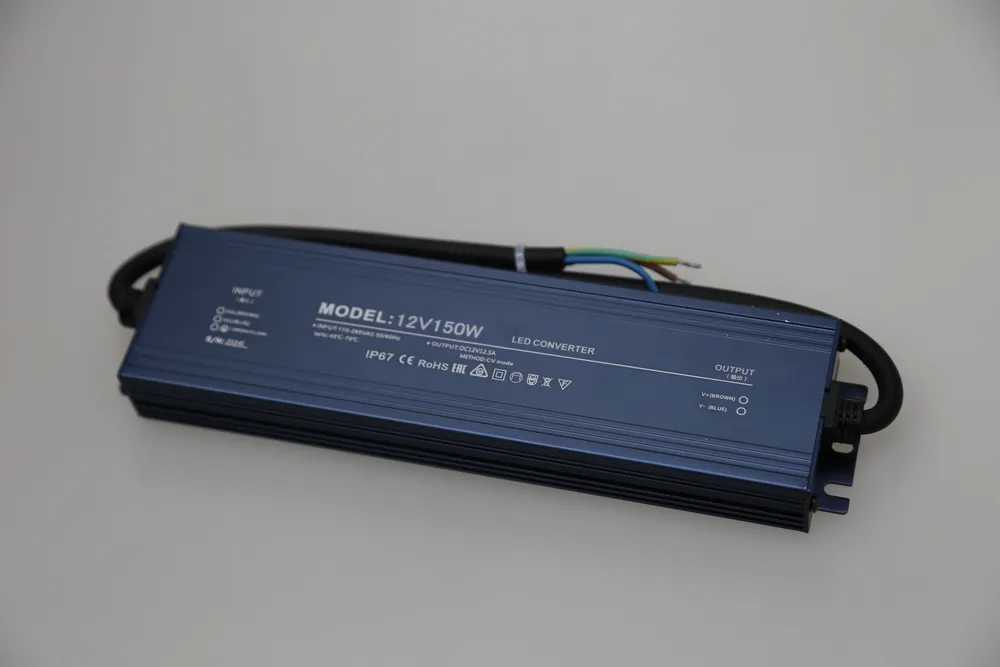

12V150W170-265VAC 50/60HZ0.66-1A12V12.5A0.85 -40°c-70°c150W544.3g223X57X25MM21.6KG30pcs30.5X30.5X24CM

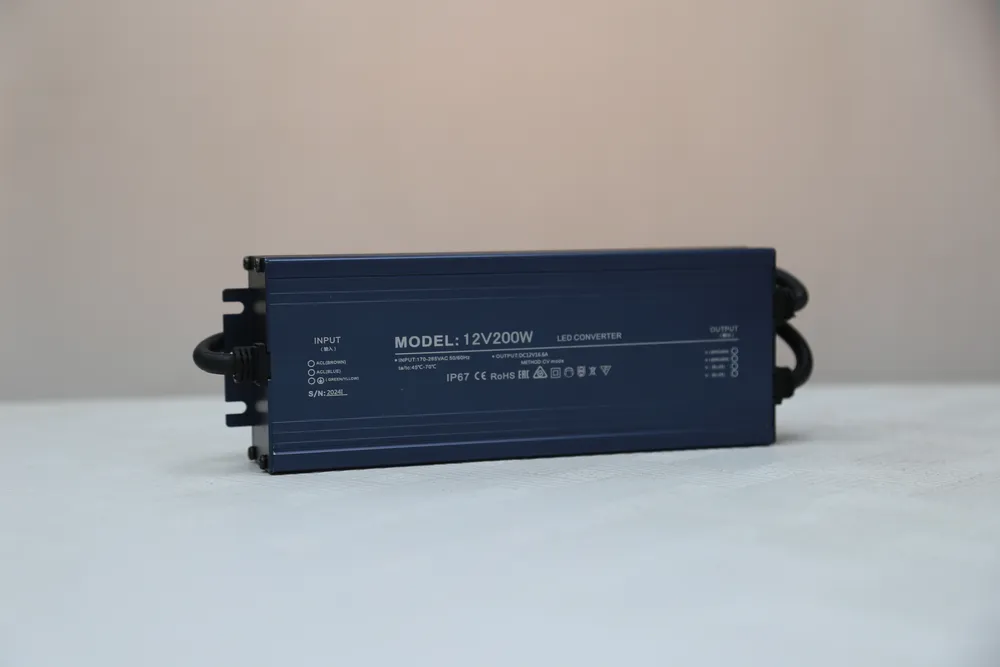

12V200W170-265VAC 50/60HZ0.98-1.3A12V16.6A0.85 -40°c-70°c200W999.4g214X73X35MM19.6KG15pcs30.5X30.5X24CM

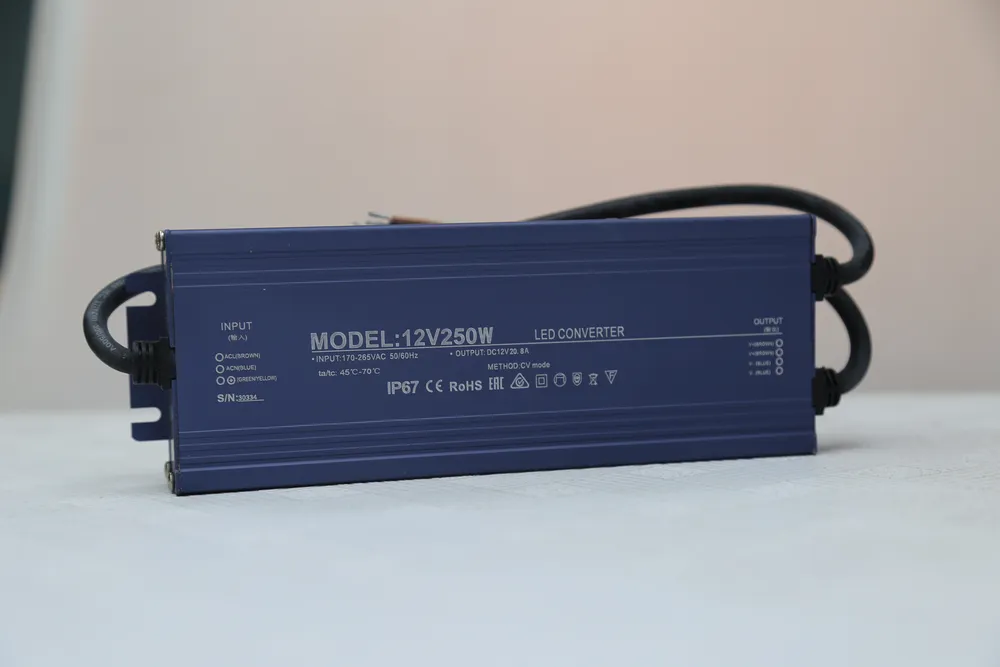

12V250W170-265VAC 50/60HZ1.1-1.73A12V20.8A0.85 -40°c-70°c250W966.5g214X73X35MM20.3KG15pcs30.5X30.5X24CM

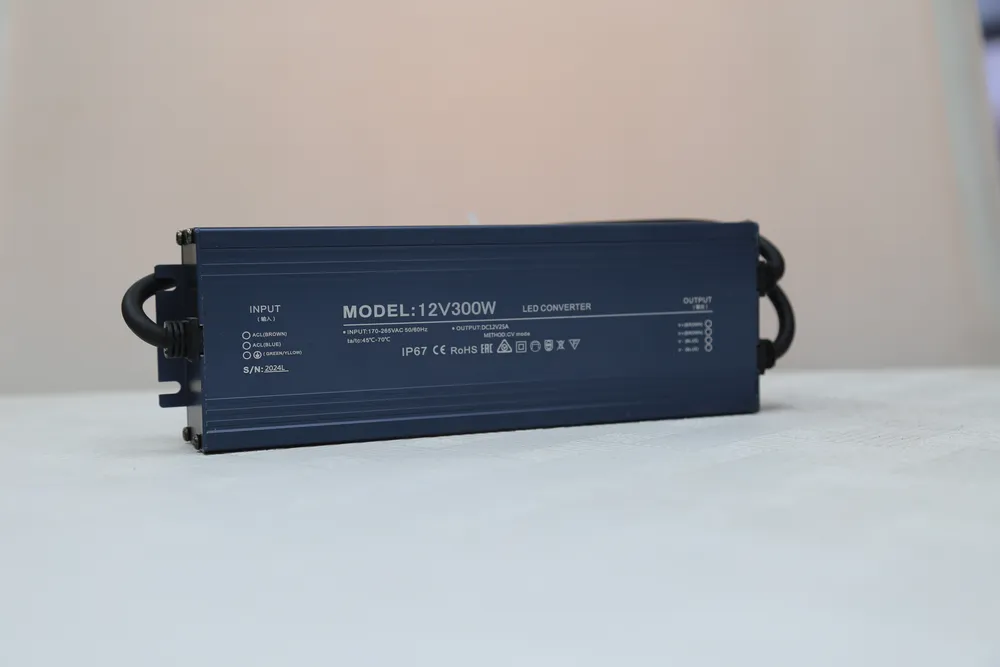

12V300W170-265VAC 50/60HZ1.47-1.96A12V25A0.85 -40°c-70°c300W1055.6g235X73X35MM19.3KG15pcs30.5X30.5X24CM

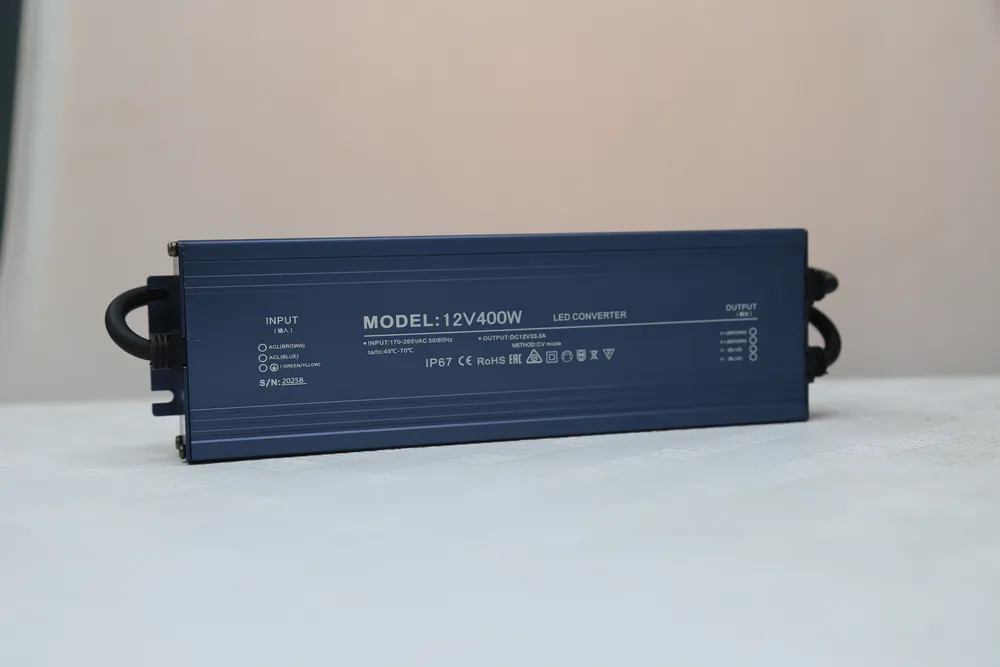

12V400W170-265VAC 50/60HZ1.96-2.6A12V33.3A0.85 -40°c-70°c400W1087g254X73X35MM20.4KG15pcs30.5X30.5X24CM
12V500W170-265VAC 50/60HZ2.2-3.46A12V41.6A0.85 -40°c-70°c500W1087g254X73X35MM 20.4KG15pcs30.5X30.5X24CM
24V60W170-265VAC 50/60HZ0.26-0.39A24V2.5A0.86 -40°c-70°c60W147.6g152X44X21MM18KG76pcs30.5X30.5X24CM
24V100W170-265VAC 50/60HZ0.44-0.66A24V4.16A0.86 -40°c-70°c100W385g196X53X21MM17KG40pcs30.5X30.5X24CM
24V150W170-265VAC 50/60HZ0.66-0.99A24V6.25A0.86 -40°c-70°c150W544.3g223X57X25MM21.6KG30pcs30.5X30.5X24CM
24V200W170-265VAC 50/60HZ0.88-1.32A24V8.3A0.86 -40°c-70°c200W950g214X73X35MM19.6KG15pcs30.5X30.5X24CM
24V250W170-265VAC 50/60HZ1.1-1.7A24V10.4A0.86 -40°c-70°c250W966.5g214X73X35MM20.3KG15pcs30.5X30.5X24CM
24V300W170-265VAC 50/60HZ1.32-1.98A24V12.5A0.86 -40°c-70°c300W991.7g235X73X35MM19.3KG15pcs30.5X30.5X24CM
24V400W170-265VAC 50/60HZ1.93-2.58A24V16.6A0.86 -40°c-70°c400W1087g254X73X35MM20.4KG15pcs30.5X30.5X24CM
24V500W170-265VAC 50/60HZ2.2-3.4A24V20.8A0.86 -40°c-70°c500W 1087g254X73X35MM 20.4KG15pcs30.5X30.5X24CM
\n



\n

Product Electrical Parameters:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Input electrical parameterVoltage range180-264VAC
Frequency range47-63Hz
Power factorPF≥0.6/230VAC
efficiency≥84%≥86%
Alternating current3.45A/230VAC
Inrush currentSTART: 50A/230VAC
Leakage current<5mA/230VAC
protectionovershort110%-140% of the rated output power
\nProtection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
short-circuitProtection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
overvoltageProtection mode: Automatic recovery mode. When the overvoltage is removed, the system automatically recovers
environmentOperating temperature-35~+50°C
Working humidity20-90% RH, non-condensing
Storage temperature; humidness‘-35~+85°C; 10~95% RH
Temperature coefficientPlus or minus 0.1% / ° C (0 to 35 ° C)
Vibration resistance10-500Hz,3G10 minutes/cycle,X, Y, Z axis 60 minutes each
Safety regulation and
\nElectromagnetic compatibility		Safety specificationEN60950 , GB4943.1 -2011
Withstand voltagel/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
Insulation impedancel/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC--
othersClass of protectionIP65
MTBF≥30khour ; Test condition: 25℃
Power supply sizeL251*W74*H38mm
Power supply weight1150g
notesUnless otherwise specified, all specifications are measured at 230VAC input, rated negative cut, and 25°C ambient temperature.
Ripple and noise measurement method: the measured end is connected with a 0.1uF+10uF capacitor, the oscilloscope is set to 20MHZ bandwidth, the probe is uncapped for testing, and the full load is 25℃.
Accuracy: including setting error, linear adjustment rate and load adjustment rate.
The output power should be reduced when the input voltage is lower than 200VAC.
