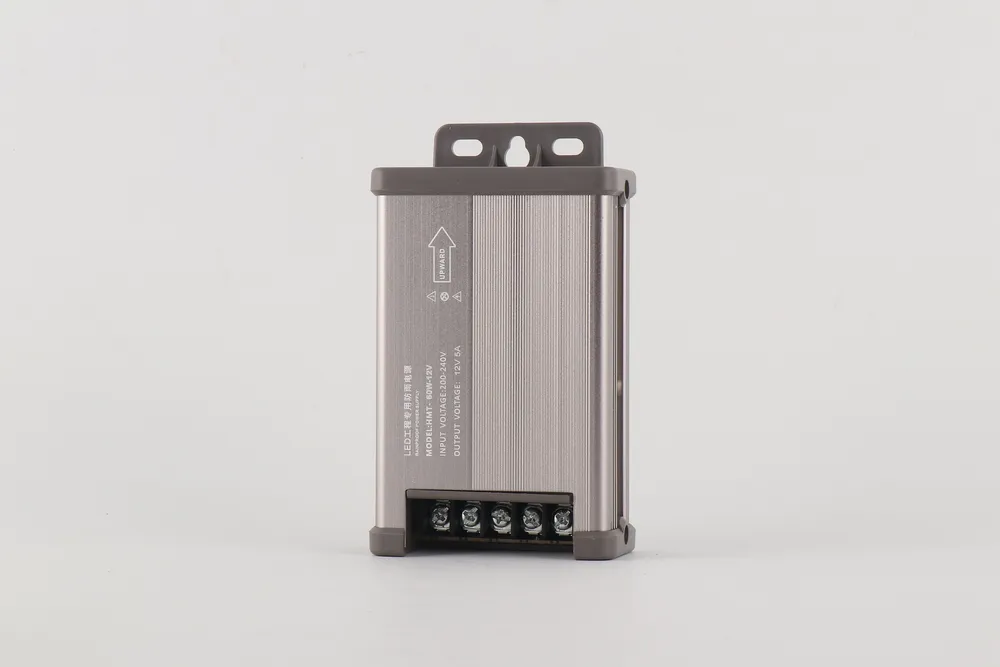

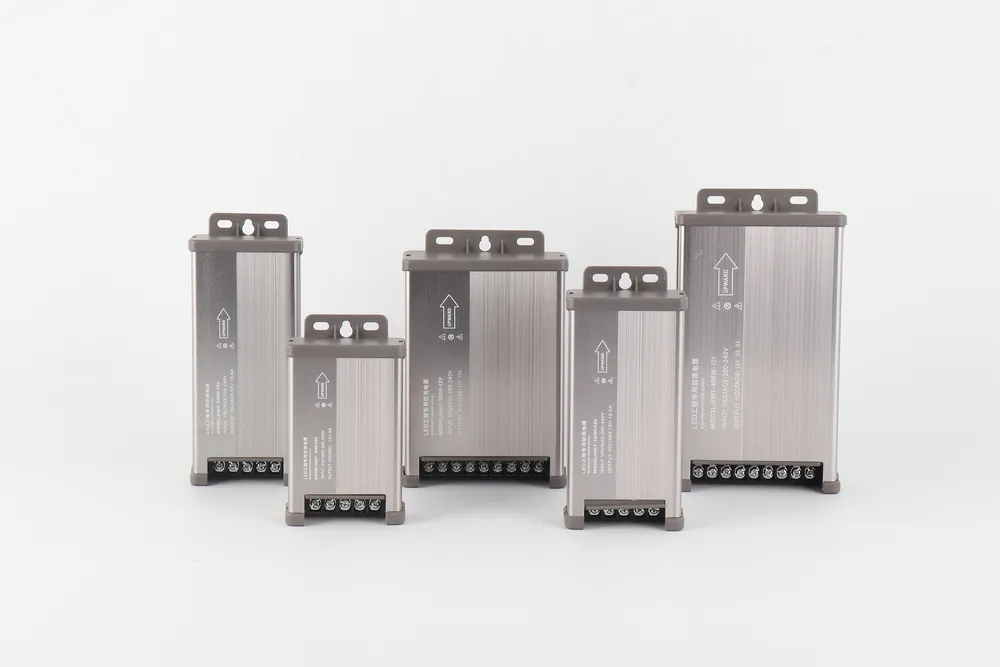

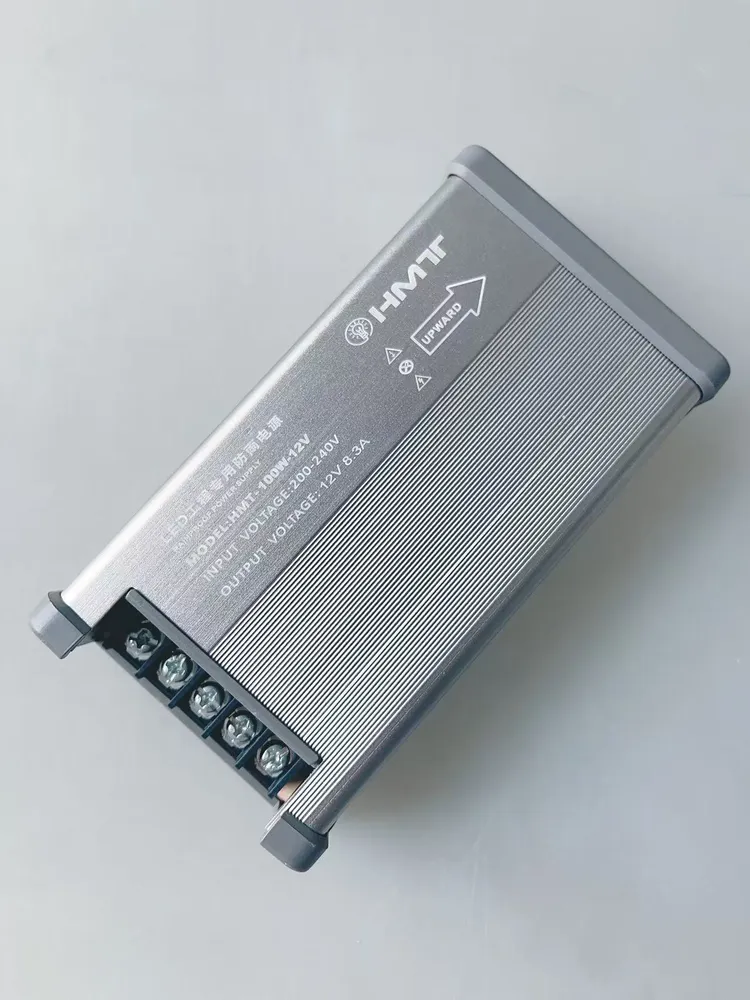

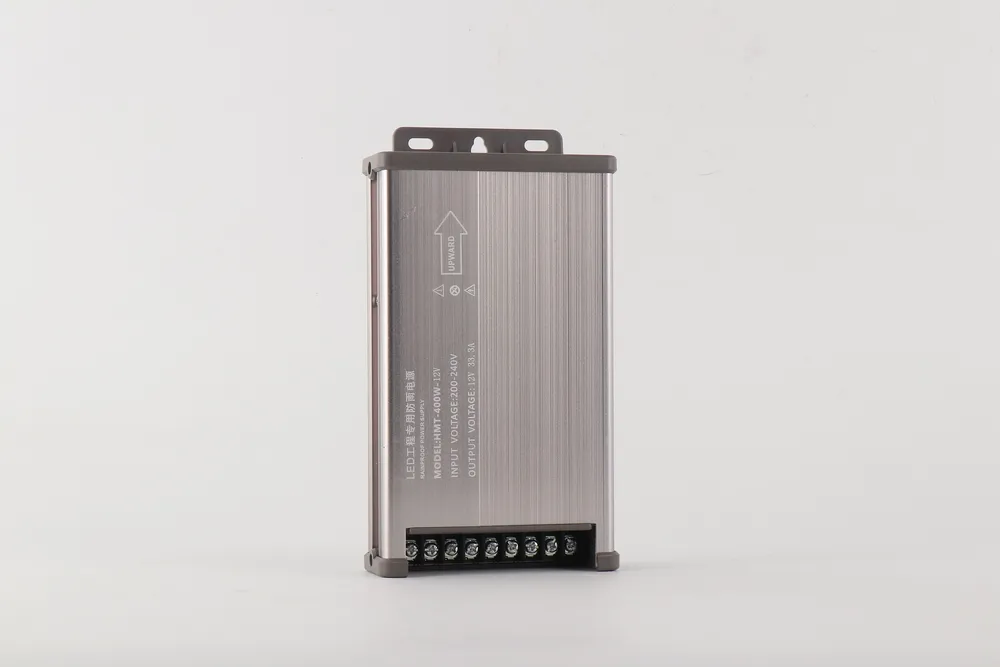

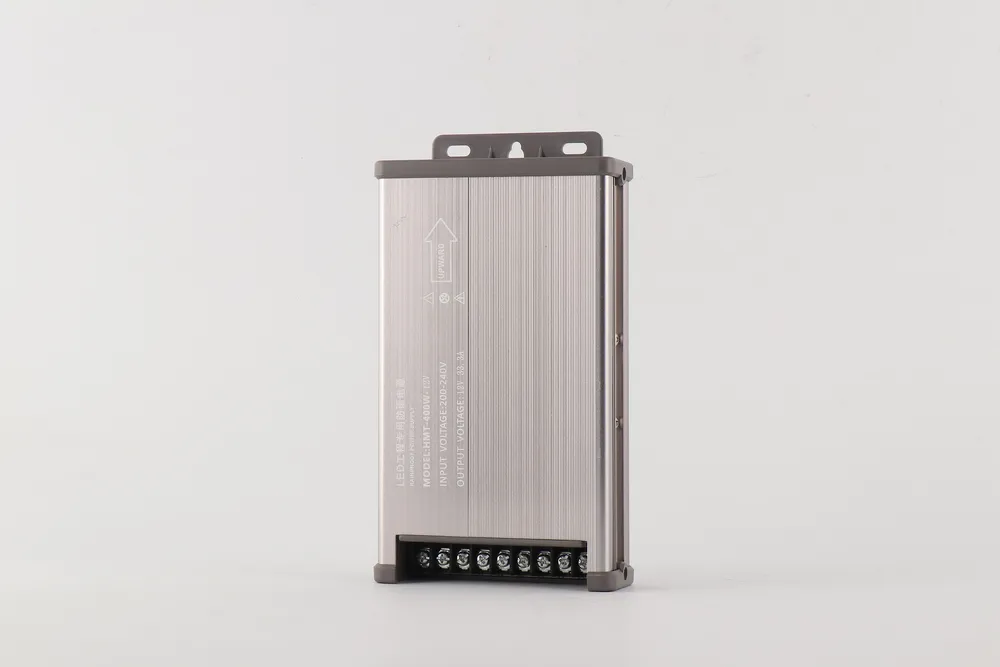

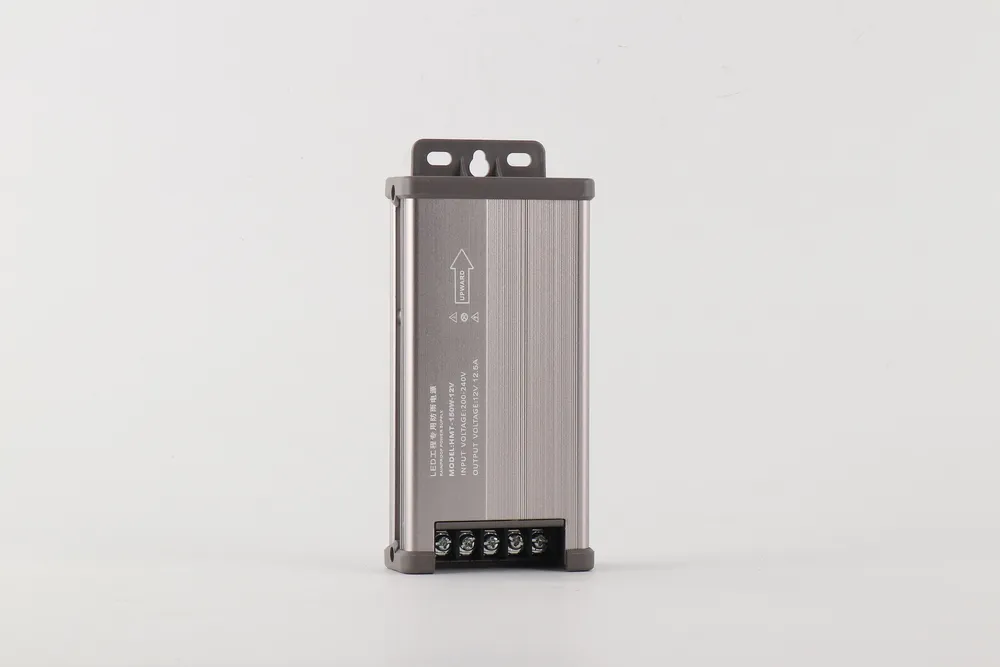

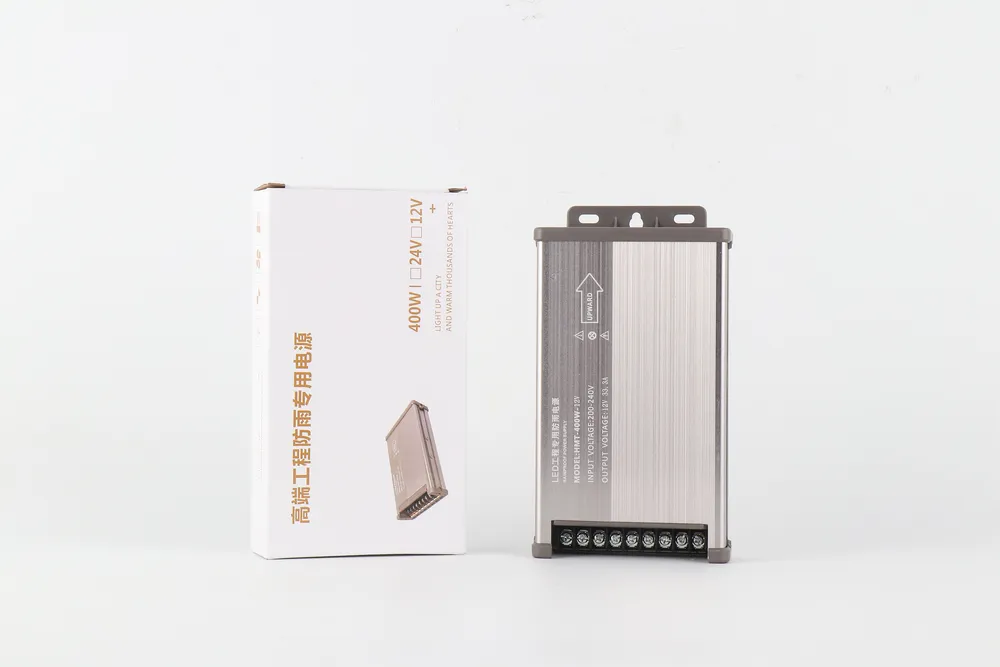

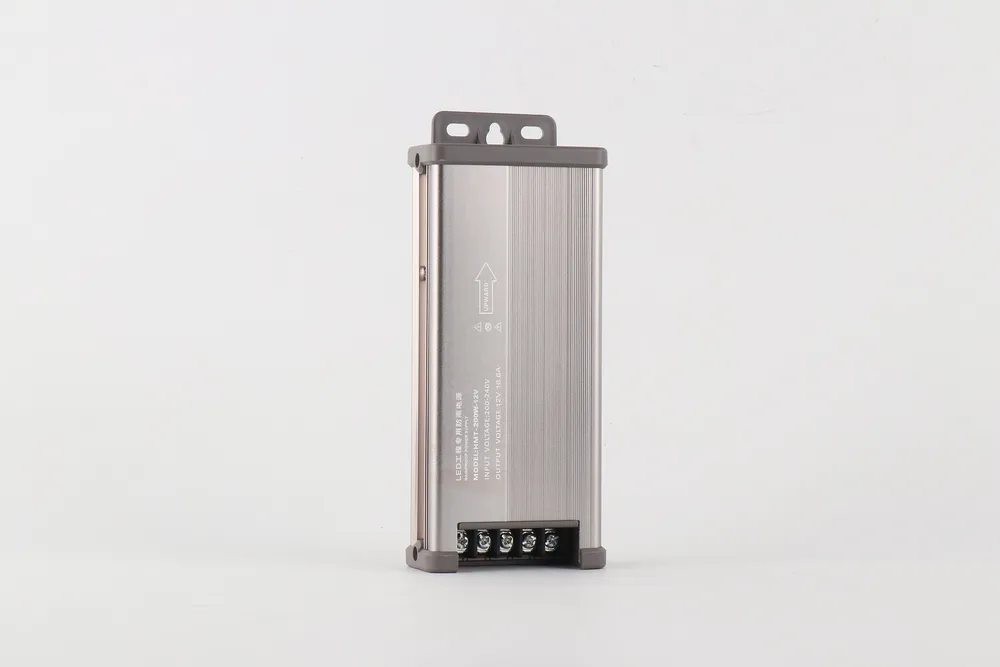

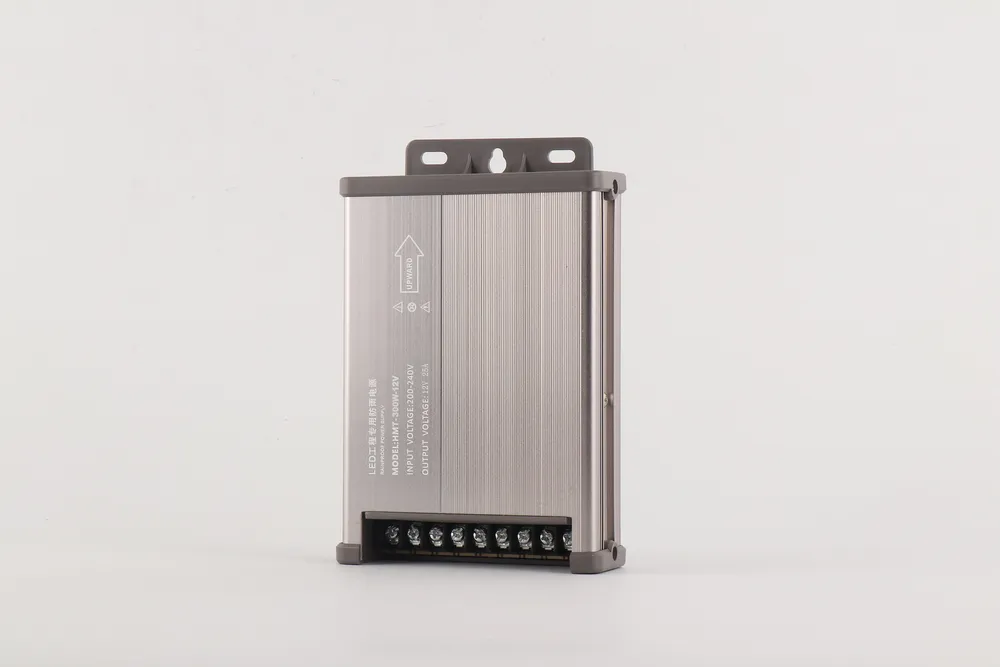

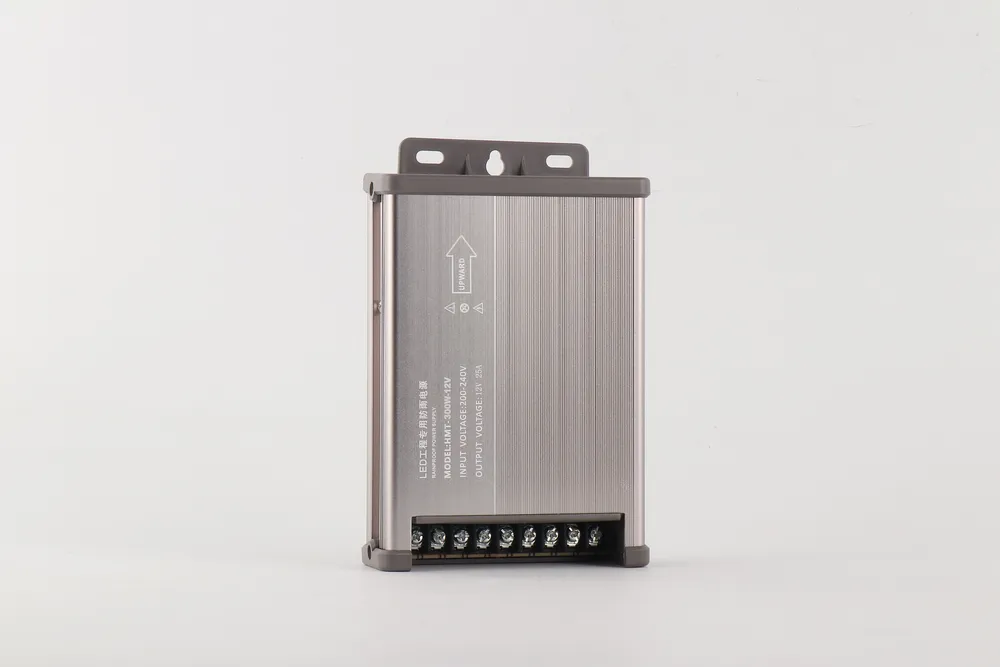

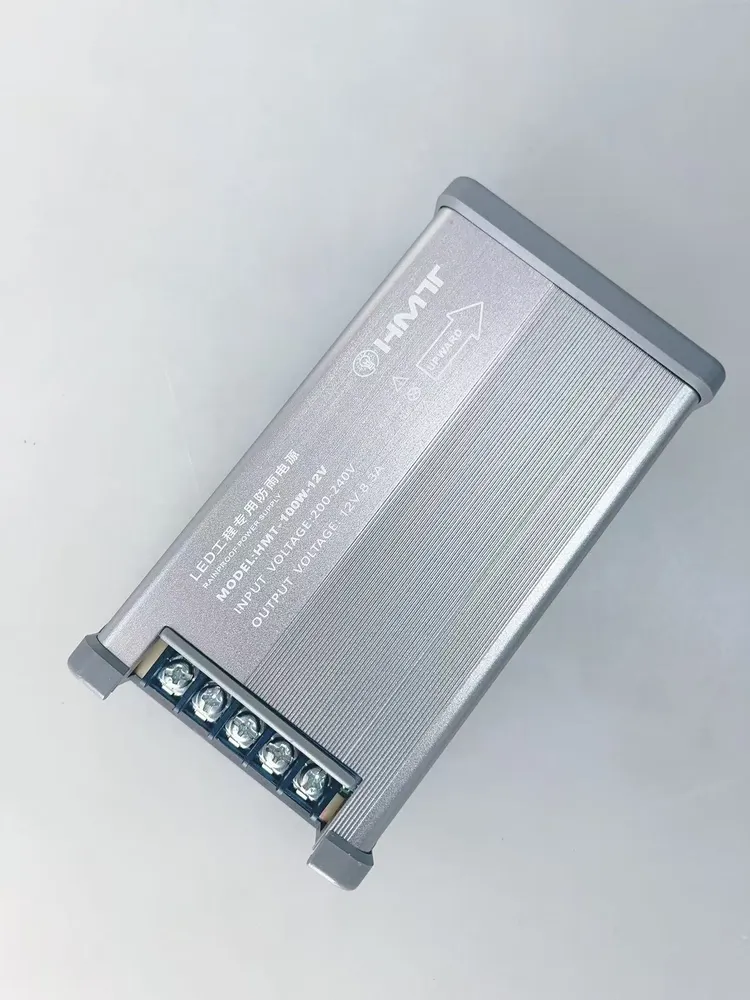

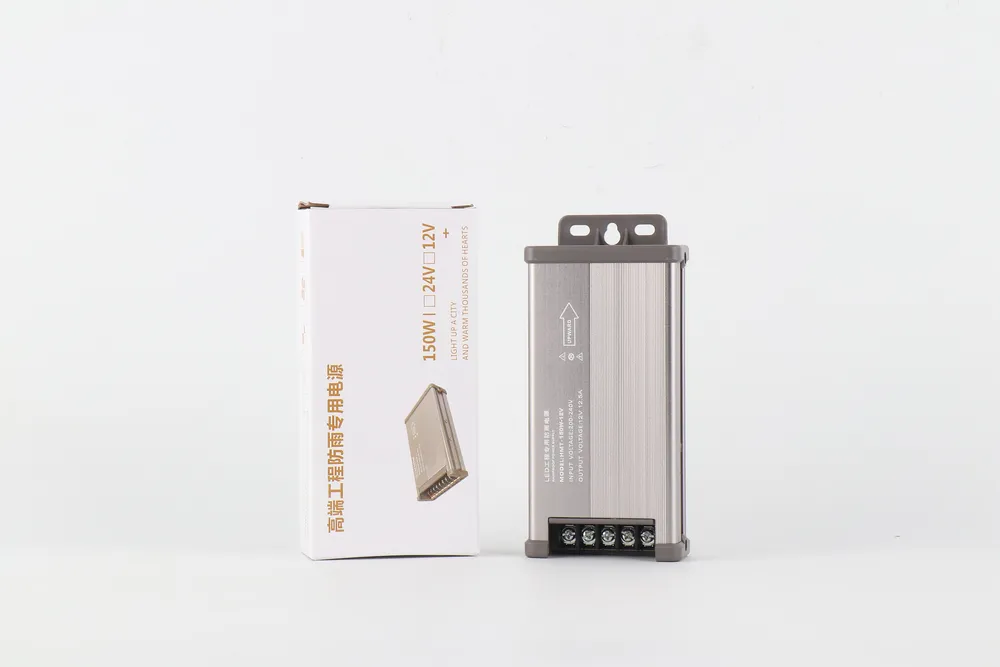

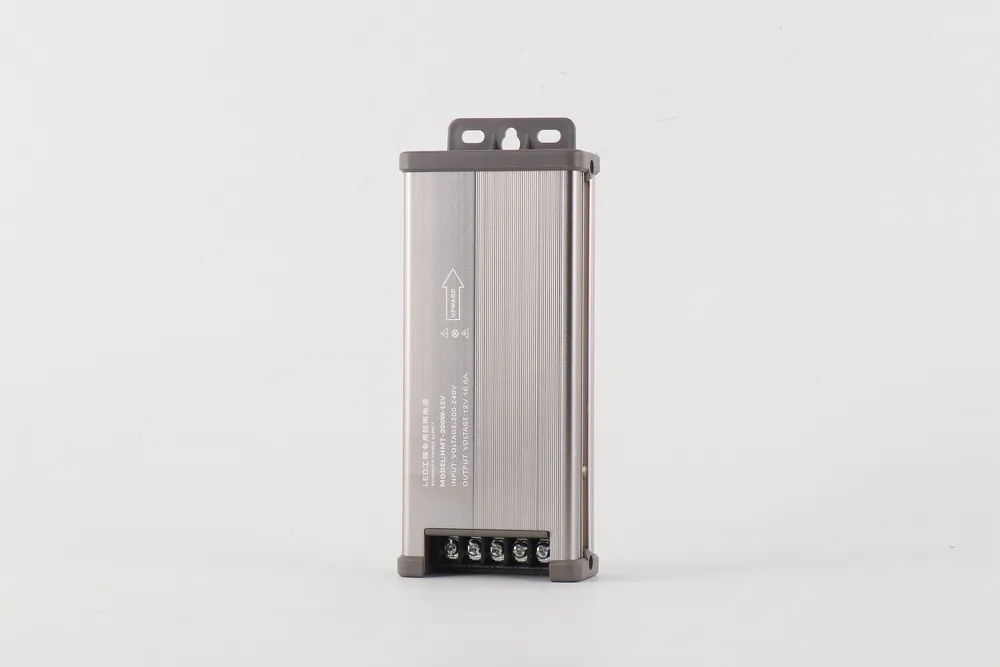

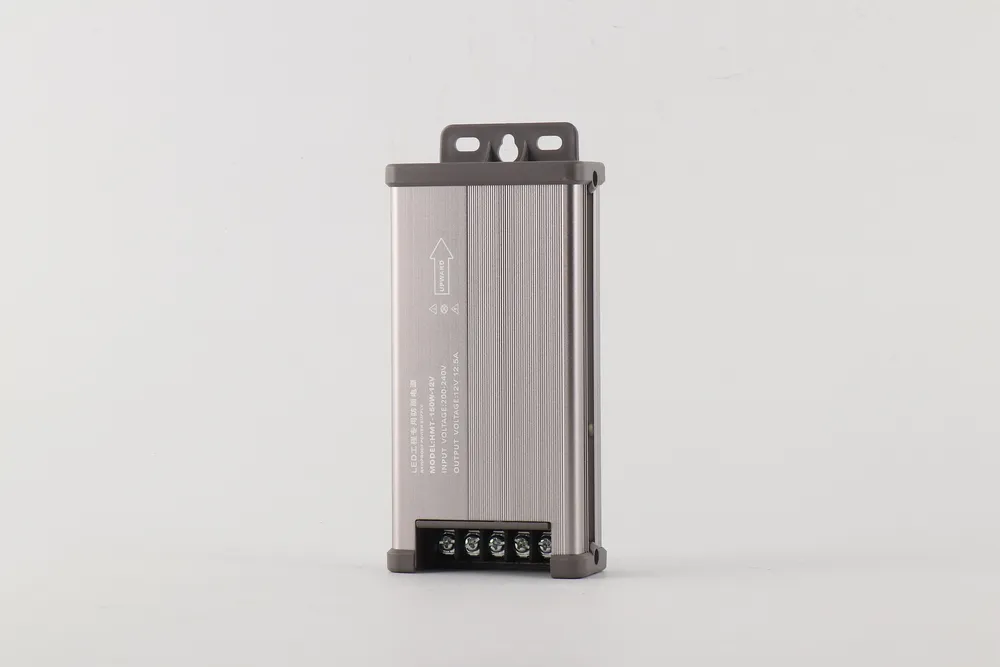

Rainproof LED Switching Power Supply AC-DC 5A-33A Power supply

Product features:

\n

AC input range (180-264VAC)

\n

Can work normally at -35~~60℃ ambient temperature

\n

Efficiency up to 80-86%

\n

Protection type: short circuit/over load

\n

With fan cooling

\n

Covered with three anti-paint

\n

LED power work indicator

\n

100% full load burn-in test

\n

2 years warrany

\n

Application:

\n

Outdoor landscape lighting project

\n

LED light sign

\n

LED low voltage light with lighting

\n

Minus 35℃ low temperature environment site

\n

Product Electrical Parameters:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

MODEL	INPUT VOLT.	OUTPUT VOLT.	OUTPUT CURRENT	EFFI	Operating temperature	POWER	PROD.WEIGHT	PROD.SIZE	G.W/CTN	QTY/CTN	CTN SIZE
12V60W	180-240VAC 50/60HZ	12V	5A	85%	-40°c-70°c	60W	174.4g	130X74X42MM	24.5KG	108pcs	57*40.5*24.5CM
12V100W	180-240VAC 50/60HZ	12V	10A	0.85	-40°c-70°c	120W	210.6g	146×74X42MM	26.5KG	98pcs	57*40.5*24.5CM
12V200W	180-240VAC 50/60HZ	12V	16.6A	0.85	-40°c-70°c	200W	267g	154X94X49MM	19.5KG	72pcs	57*40.5*24.5CM
12V300W	180-240VAC 50/60HZ	12V	25A	0.85	-40°c-70°c	300W	328g	184X99X49MM	20KG	50pcs	57*40.5*24.5CM
12V400W	220-240VAC 50/60HZ	12V	33.3A	0.85	-40°c-70°c	400W	413g	180X116X50MM	20KG	40pcs	58*38*26.5CM
12V500W	220-240VAC 50/60HZ	12V	41.6A	0.85	-40°c-70°c	500W	644.8g	205X116X50MM	26.5KG	40pcs	56*46*26CM
12V600W	220-240VAC 50/60HZ	12V	50A	0.85	-40°c-70°c	600W	644.8g	205X116X50MM	26.5KG	40pcs	56*46*26CM
5V350W	220-240VAC 50/60HZ	5V	70A	0.85	-40°c-70°c	350W	426g	187×110X49MM	25.5KG	60pcs	58.5*40*36CM
24V400W	220-240VAC 50/60HZ	24V	16.6A	0.86	-40°c-70°c	400W	426g	187×110X49MM	25.5KG	60pcs	58.5*40*36CM

\n



\n

Input electrical parameter AND protection:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Input electrical parameter	Voltage range	180-264VAC
	Frequency range	47-63Hz
	Power factor	PF≥0.6/230VAC
	efficiency	≥84%	≥86%
	Alternating current	3.4A/230VAC
	Inrush current	START: 50A/230VAC
	Leakage current	<5mA/230VAC
protection	overshort	110%-140% of the rated output power \nProtection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
	short-circuit	Protection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
	overvoltage	Protection mode: Automatic recovery mode. When the overvoltage is removed, the system automatically recovers

\n



\n

NOTES:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Unless otherwise specified, all specifications are measured at 230VAC input, rated negative cut, and 25°C ambient temperature.

Ripple and noise measurement method: the measured end is connected with a 0.1uF+10uF capacitor, the oscilloscope is set to 20MHZ bandwidth, the probe is uncapped for testing, and the full load is 25℃.

Accuracy: including setting error, linear adjustment rate and load adjustment rate.

The output power should be reduced when the input voltage is lower than 200VAC.
