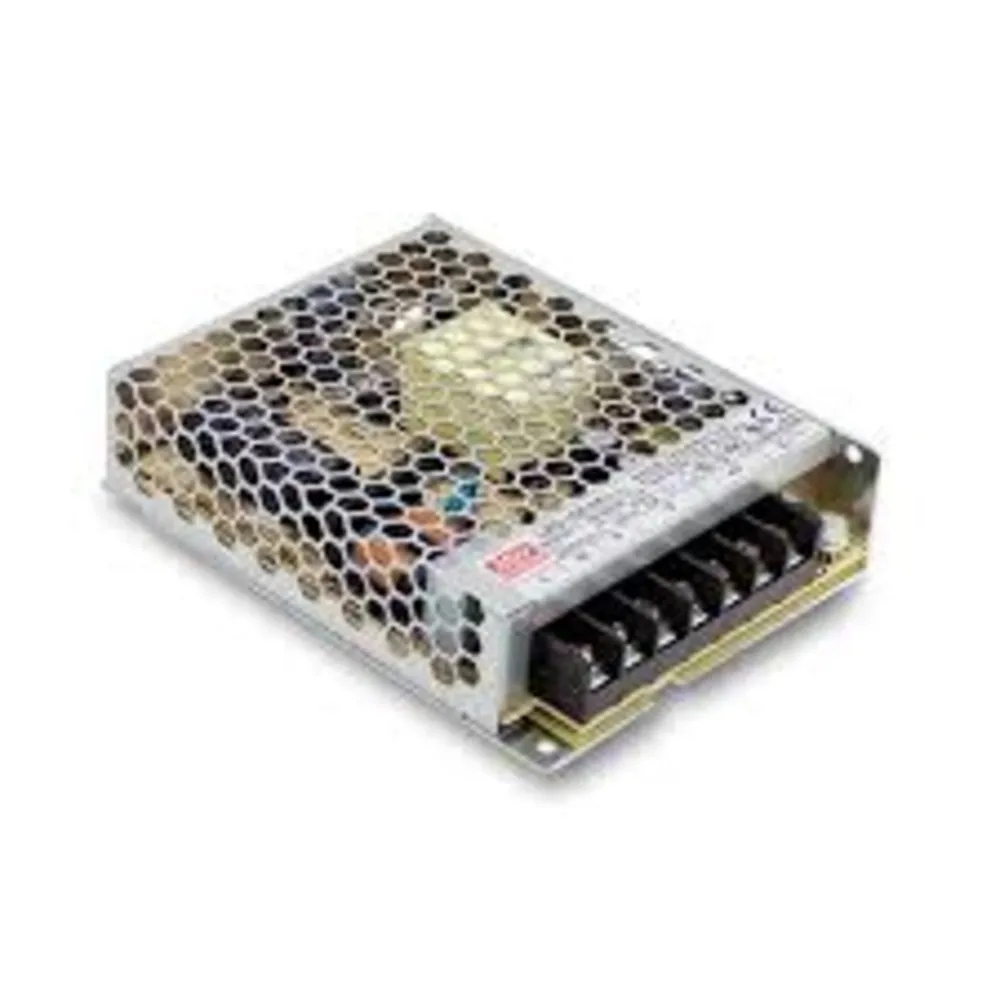

INDOOR POWER SUPPLY 12V 110V

Product features:

\n

AC input range (180-264VAC)

\n

Can work normally at -20℃ low temperature

\n

Efficiency up to 88%

\n

Protection type: short circuit/over load

\n

With fan cooling

\n

LED power work indicator

\n

100% full load burn-in test

\n

2 years warrany

\n

Application:

\n

LED light sign,LED Lightbox

\n

LED low voltage light with lighting

\n

Minus 20℃ low temperature environment site

\n

Product Electrical Parameters:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

MODEL	INPUT VOLT.	OUTPUT VOLT.	OUTPUT CURRENT	EFFI	Operating temperature	POWER	PROD.WEIGHT	PROD.SIZE	G.W/CTN	QTY/CTN	CTN SIZE
60W	176-264VAC 50/60HZ	12V/24V	5A/2.5A	0.85	-40°c-70°c	60W	84.3g	39.5*27*16.8CM	11KG	120pcs	39.5X27X16.8CM
100W	176-264VAC 50/60HZ	12V/24V	10A/5A	0.85	-40°c-70°c	100W	141.4g	34.5*30.5*22.5CM	14.8KG	80pcs	34X30.5X22.5CM
200W	176-264VAC 50/60HZ	12V/24V	16.6A/8.3A	0.85	-40°c-70°c	200W	181.2g	39*34*17.5CM	12.5KG	60pcs	39×34X17.5CM
300W	176-264VAC 50/60HZ	12V/24V	25A/12.5A	0.85	-40°c-70°c	300W	308.5g	35*21*32.5CM	18KG	50pcs	34X20.5X2.5CM
400W	176-264VAC 50/60HZ	12V/24V	33.3A/16.6A	0.85	-40°c-70°c	400W	319.5g	30*24.5*26CM	14.7KG	40pcs	34.5X24X26CM

\n

Input electrical parameter AND protection:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Input electrical parameter	Voltage range	180-264VAC
	Frequency range	47-63Hz
	Power factor	PF≥0.6/230VAC
	efficiency	≥85%	≥88%
	Alternating current	3.4A/230VAC
	Inrush current	START: 50A/230VAC
	Leakage current	<5mA/230VAC
protection	overshort	110%-140% of the rated output power \nProtection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
	short-circuit	Protection mode: Automatic recovery mode. When abnormal load conditions are removed, the system automatically recovers
	overvoltage	Protection mode: Automatic recovery mode. When the overvoltage is removed, the system automatically recovers

\n



\n

NOTES:

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Unless otherwise specified, all specifications are measured at 230VAC input, rated negative cut, and 25°C ambient temperature.

Ripple and noise measurement method: the measured end is connected with a 0.1uF+10uF capacitor, the oscilloscope is set to 20MHZ bandwidth, the probe is uncapped for testing, and the full load is 25℃.

Accuracy: including setting error, linear adjustment rate and load adjustment rate.

The output power should be reduced when the input voltage is lower than 200VAC.
